DNS

• NsLookup Learning Center

• Troubleshooting DNS with dig

• DNS Root Servers

• The Sisyphean Task Of DNS Client Config on Linux

• Anatomy of a Linux DNS Lookup – Part I

  • https://zwischenzugs.com/2018/06/08/anatomy-of-a-linux-dns-lookup-part-i/

  • https://zwischenzugs.com/2018/06/18/anatomy-of-a-linux-dns-lookup-part-ii/

  • https://zwischenzugs.com/2018/07/06/anatomy-of-a-linux-dns-lookup-part-iii/

  • https://zwischenzugs.com/2018/08/06/anatomy-of-a-linux-dns-lookup-part-iv/

  • https://zwischenzugs.com/2018/09/13/anatomy-of-a-linux-dns-lookup-part-v-two-debug-nightmares/

• https://sookocheff.com/post/networking/how-does-dns-work/

• https://doc.powerdns.com/authoritative/appendices/types.html

Online DNS Check Tools

• Zonemaster

• Cloudflare Radar

• DNS Spy

Vocabulary

• Records

  • A: Points to IP address

  • AAAA: Same as A, but for IPv6

  • CNAME: Canonical Name Record. Points to alias (domain/subdomain name)

  • MX: Mail eXchange records; tells email delivery agents where to deliver mail

  • TXT: flexible Text records, for storing strings for a variety of uses

  • SOA: singular Start of Authority record kept at the top level of the domain. Contains specific required information about the domain, for example its primary name server

  • NS: The name servers associated with the domain

• example.com = apex/root/naked domain name

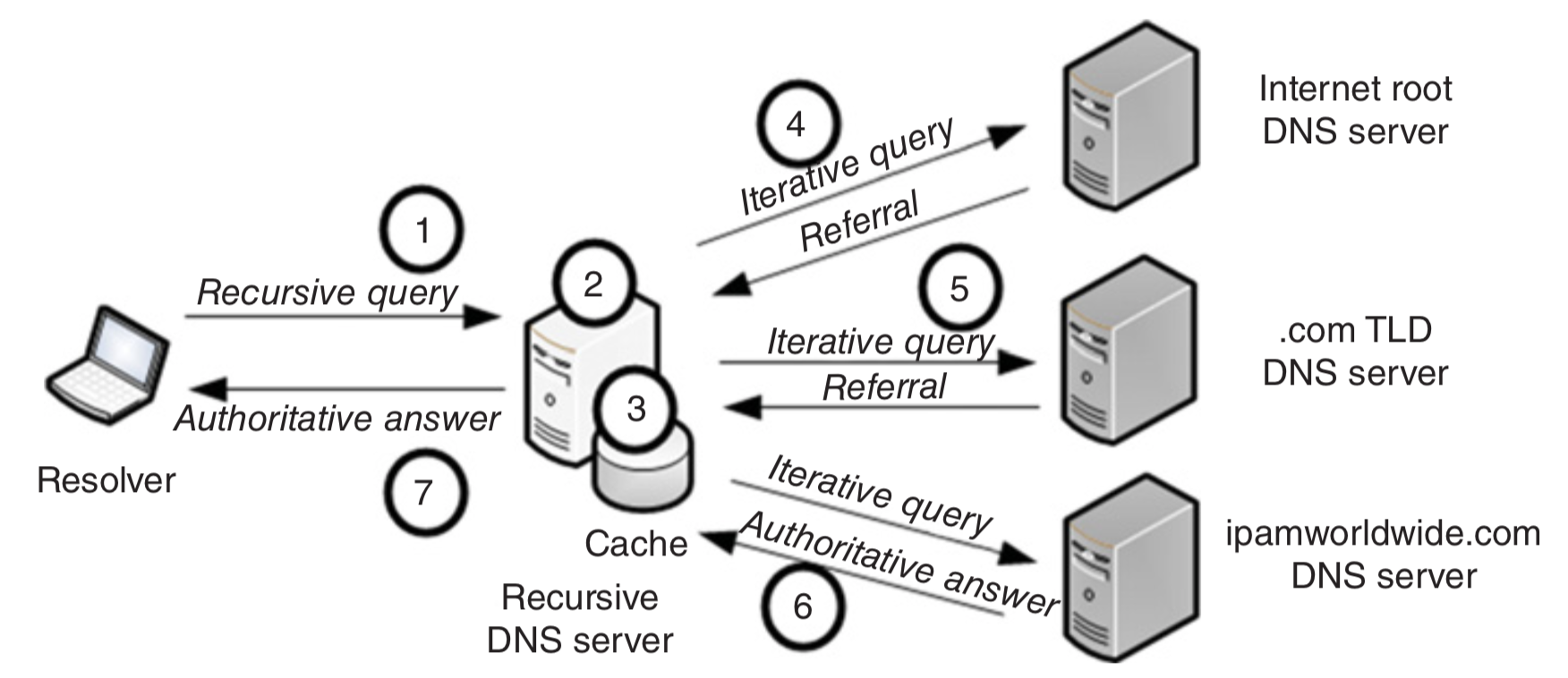

Query

Browser --asks--> ISP DNS
Browser --asks--> ISP DNS --asks--> root server --returns list of TLD (e.g. .com) servers-->..
            ..--> ISP DNS --asks--> TLD server --returns the authoritative name server-->

Root servers: {a..m}.root-servers.net.

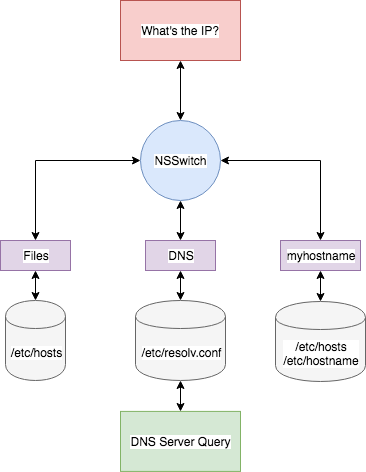

NSSwitch

Many programs use libc call getaddrinfo.

Example: ping uses nsswitch, while host doesn’t (but both read resolv.conf):

strace -f -e trace=open,openat \
    ping -c1 google.com 2>&1 >/dev/null |grep -z -e resolv.conf -e nsswitch

strace -f -e trace=open,openat \
    host google.com 2>&1 >/dev/null |grep -z -e resolv.conf -e nsswitch

Possible Issues

• Why a domain’s root can’t be a CNAME — and other tidbits about the DNS

WWW Problem

A record:

A: www.example.com --> 123.123.123.123
A:     example.com --> 123.123.123.123

CNAME record:

CNAME: www.example.com --> example.com
A:         example.com --> 123.123.123.123

Scripting

• use: getent hosts example.com (is IPv6-first though)

• don’t: host example.com (doesn’t respect nsswitch; not reliable output format)

Using dig

• Useful Linux Dig Examples for the Network Admin

• JEvans: How to use dig

  • HN

DNS Query Options

1. name: e.g jvns.ca. Default is .

2. query type: e.g. A or CNAME. Default is A

3. DNS server: e.g. @8.8.8.8. Default is whatever is in /etc/resolv.conf

Examples:

• dig @8.8.8.8 jvns.ca

• dig ns jvns.ca

Reverse DNS Lookup

$ dig -x 172.217.13.174
174.13.217.172.in-addr.arpa. 72888 IN   PTR yul03s04-in-f14.1e100.net.

# `-x 172.217.13.174` is a shortcut for
$ dig ptr 174.13.217.172.in-addr.arpa.

Formatting response

$ dig +noall +answer ns google.com
google.com.     158564  IN  NS  ns4.google.com.
...

$ dig +short ns google.com
ns2.google.com.
...

$ # Return behavior by default (if non-empty ~/.digrc)
$ dig +all jvns.ca

digrc

~/.digrc

+noall +answer
